Características:

- Marca: Gigabyte
- Modelo: B450M Gaming

Especificações:

CPU:
- AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen     Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega  Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega  - Graphics Processors
 (Please refer "CPU Support List" for more information.)

Chipset:
- AMD B450

Memória:
- 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz  memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC  mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
 (Please refer "Memory Support List" for more information.)

Gráficos Onboard:
- Integrated Graphics Processor:
 - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
 - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.2.
  * Actual support may vary by CPU.
-Maximum shared memory of 16 GB

Áudio:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
 * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Support for S/PDIF Out

LAN:
- Realtek® GbE LAN chip (10/100/1000 Mbit)

Slots de Expansão:
- 1 x PCI Express x16 slot, running at x16
 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slot
 (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Interface de Armazenamento:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD  support)
 * Actual support may vary by CPU.
 * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series  or Athlon™ X4 APU.
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10

USB:
- Chipset:
 - 2 x USB 3.1 Gen 1 ports available through the internal USB header
 - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- CPU:
 - 4 x USB 3.1 Gen 1 ports on the back panel

Conectores Internos I/O:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x CPU cooler LED strip/RGB LED strip header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x speaker header
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header

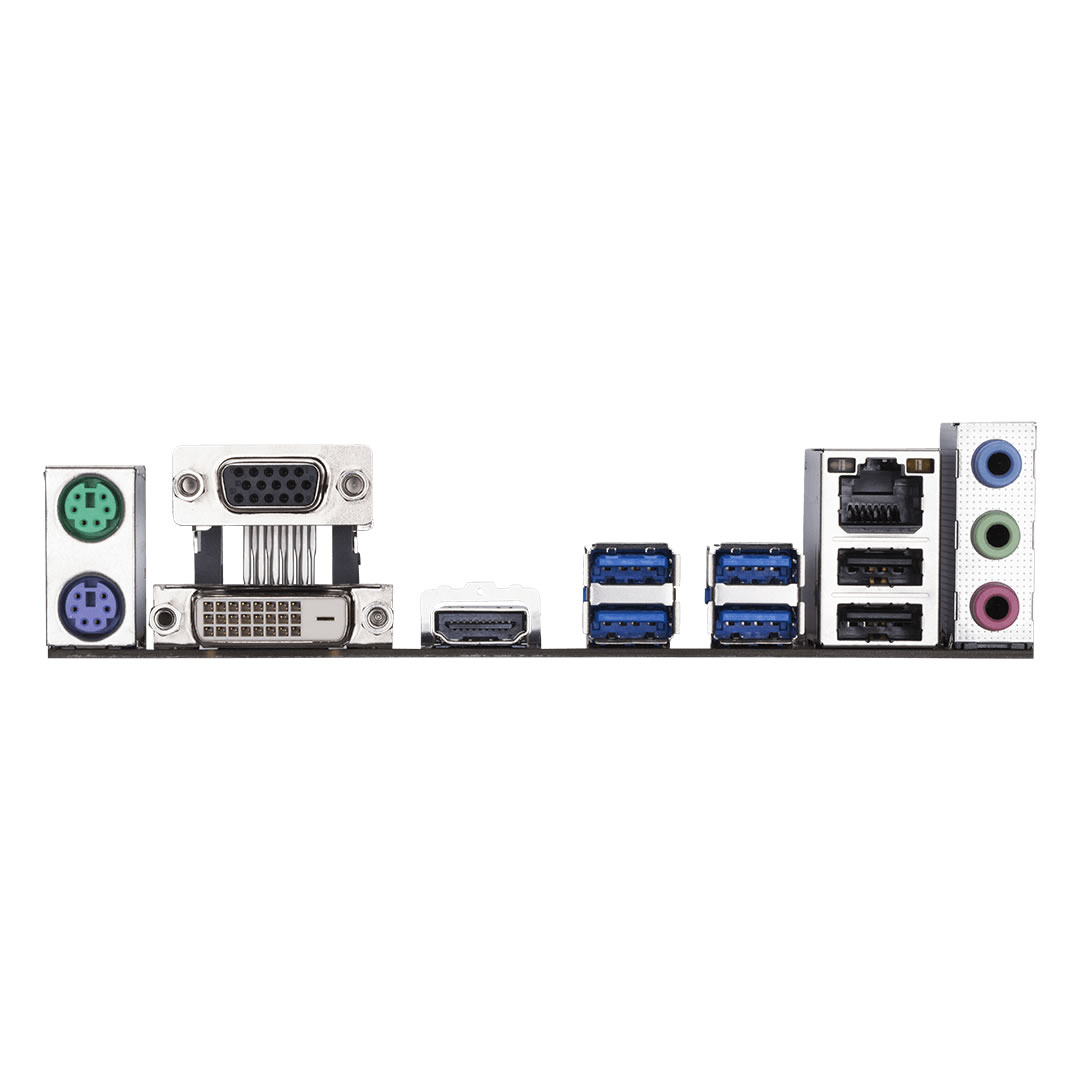

Conectores Painel Traseiro:
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks

Controlador I/O:
- iTE® I/O Controller Chip

Monitoramento H/W:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
 * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas:
- Support for APP Center
 - * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
 - 3D OSD
 - AutoGreen
 - Cloud Station
 - EasyTune
 - Fast Boot
 - Game Boost
 - ON/OFF Charge
 - RGB Fusion
 - Smart Backup
 - Smart Keyboard
 - Smart TimeLock
 - Smart HUD
 - Smart Survey
 - System Information Viewer
 - USB Blocker
- Support for Q-Flash
- Support for Xpress Install

Pacote de Software:
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility

Sistema Operacional:
-  Support for Windows 10 64-bit
- Support for Windows 7 64-bit
 * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge  CPU.
 * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor:
- Micro ATX Form Factor;
- 24.4cm x 20.5cm

Conteúdo da embalagem:
- Placa-Mãe Gigabyte B450M Gaming
- Drive
- Guia do usuário

Garantia:
- 12 meses de garantia

Peso:
- 840 gramas (bruto com embalagem)
